plastic sheet extruder-130-1000
Model：RSE-130-1000
Contact Details
WhatsApp：
8615355870907
Email：
zhu@cnrayshape.com
Address：
No. 19, East Section of Pinghai road,Binhai New District, Pingyang County, Wenzhou City, Zhejiang Province
INTRODUCTION
The RSE-130-1000 inclined single-layer plastic sheet extruder unit consists of an extruder, calender, haul-off unit, winder, and electrical control cabinet. This integrated mechanical, pneumatic, and electrical design ensures high-quality sheet production, ensuring uniform mixing and plasticizing of thin sheets. It meets various production requirements. All machine components are from renowned domestic and international brands, ensuring high efficiency and stability throughout the entire production process.

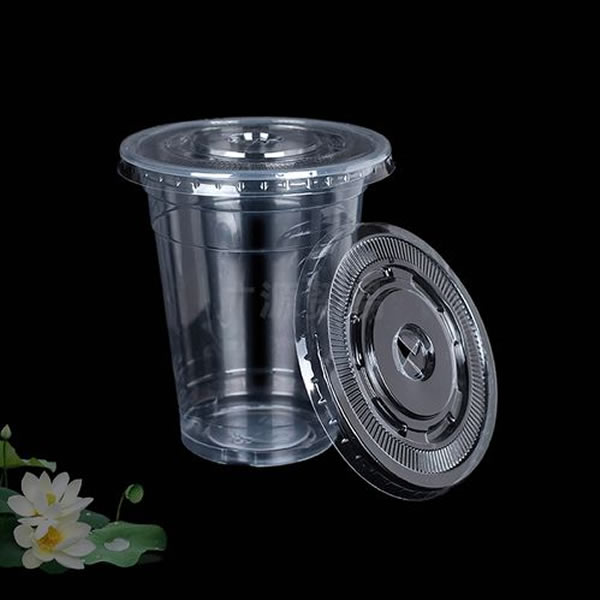

It is suitable for extruding plastic sheets such as polypropylene (PP), polystyrene (PS), and polyethylene (PE). The formed plastic sheets are used to make thermoformed packaging containers such as plastic trays, beverage cups, ice cream cups, yogurt cups, lids, plates, fruit boxes, and other printed products.
It is suitable for extruding plastic sheets such as polypropylene (PP), polystyrene (PS), and polyethylene (PE). The formed plastic sheets are used to make thermoformed packaging containers such as plastic trays, beverage cups, ice cream cups, yogurt cups, lids, plates, fruit boxes, and other printed products.
FEATURES AND ADVANTAGES
1. High degree of standardization, simple operation, reliable performance, low noise, and high quality.
2. Integrated mechanical, pneumatic, and electrical systems, controlled by a microcomputer and programmable logic controller (PLC).
3. Easy-to-use human-machine interface with remote connection capability.
4. Major components, including the screw, barrel, screen changer, and die head, are constructed of high-quality alloy steel (38CrMOAIA) and nitrided for high hardness, corrosion resistance, and long service life.
5. Optimized screw design with a large aspect ratio ensures uniform plasticization, excellent mixing, and high production capacity.
6. The extruder frame is constructed of square steel, ensuring stable high-speed operation and continuous production without downtime.
7. The extruder motor and gearbox are directly connected, improving production efficiency.
8. The screen changer utilizes a hydraulic dual-screen mechanism, eliminating the need to stop the machine for screen changes. This provides convenient operation and enhanced production efficiency. 9. The machine's calendering, pulling, and winding sections (including waste edge winding) feature a separate design, aesthetically pleasing and easy to install and debug.
10. The calendering roller's inner liner features a spiral groove design, providing excellent cooling and enhanced rigidity.
11. The calendering roller can be optionally equipped with an independent temperature control system to meet diverse process requirements.
12. Optional gantry and flip-type winding machines are also available, and multi-station customization is also possible.
2. Integrated mechanical, pneumatic, and electrical systems, controlled by a microcomputer and programmable logic controller (PLC).
3. Easy-to-use human-machine interface with remote connection capability.
4. Major components, including the screw, barrel, screen changer, and die head, are constructed of high-quality alloy steel (38CrMOAIA) and nitrided for high hardness, corrosion resistance, and long service life.
5. Optimized screw design with a large aspect ratio ensures uniform plasticization, excellent mixing, and high production capacity.
6. The extruder frame is constructed of square steel, ensuring stable high-speed operation and continuous production without downtime.
7. The extruder motor and gearbox are directly connected, improving production efficiency.
8. The screen changer utilizes a hydraulic dual-screen mechanism, eliminating the need to stop the machine for screen changes. This provides convenient operation and enhanced production efficiency. 9. The machine's calendering, pulling, and winding sections (including waste edge winding) feature a separate design, aesthetically pleasing and easy to install and debug.
10. The calendering roller's inner liner features a spiral groove design, providing excellent cooling and enhanced rigidity.
11. The calendering roller can be optionally equipped with an independent temperature control system to meet diverse process requirements.
12. Optional gantry and flip-type winding machines are also available, and multi-station customization is also possible.
SPECIFICAITON
|
Applicable Materials |
PP, PS, PE |
Main Motor Power |
160kw |
|
Product Width |
PP, PE: 850mm |
Heating Power |
85kw |
|
Product Thickness |
PP, PE: 0.3-2mm |
Total Power |
235kw |
|
Effective Die Width |
1000mm |
Flow Rate |
80m³/h |
|
Effective Roller Width |
1000mm |
Line Speed |
15-30m/min |
|
Three Roller Diameters |
400mm*1 |
Production Capacity |
300-400kg/h |
|
Screw Diameter |
130mm |
Equipment Weight |
12000kg |
|
Screw Aspect Ratio |
1:36 |
Equipment Dimensions |
Length * Width * Height |
PARTNER BARANDS
Product Ordering
Please fill in the following information
Recommended Plastic Sheet Extruder
plastic sheet extruder-120-1000
Model: RSE-120-1000
The RSE-120-1000 inclined single-layer plastic sheet extruder unit consists of an extruder, calender, haul-off unit, winder, and electrical control ca...

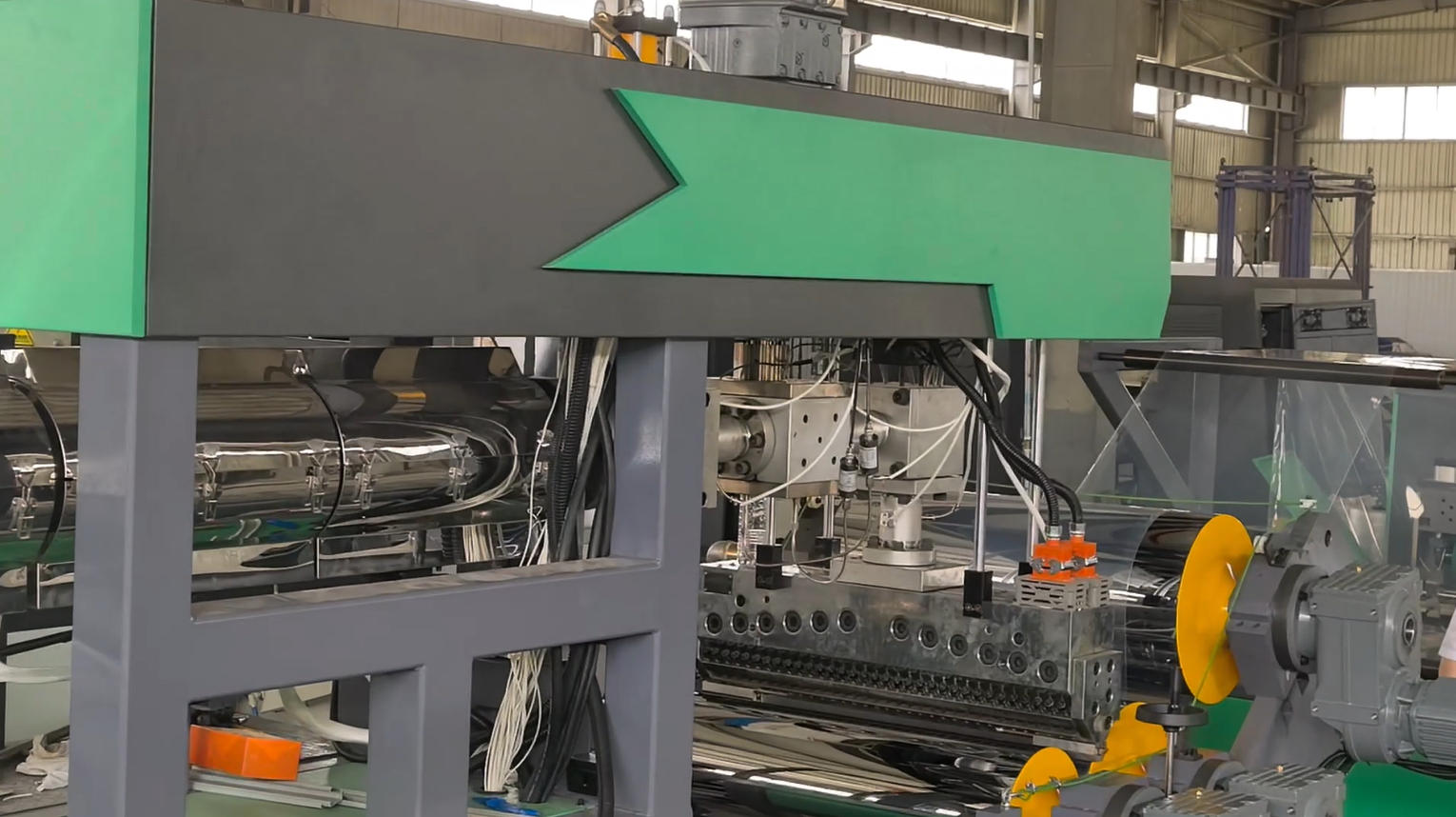

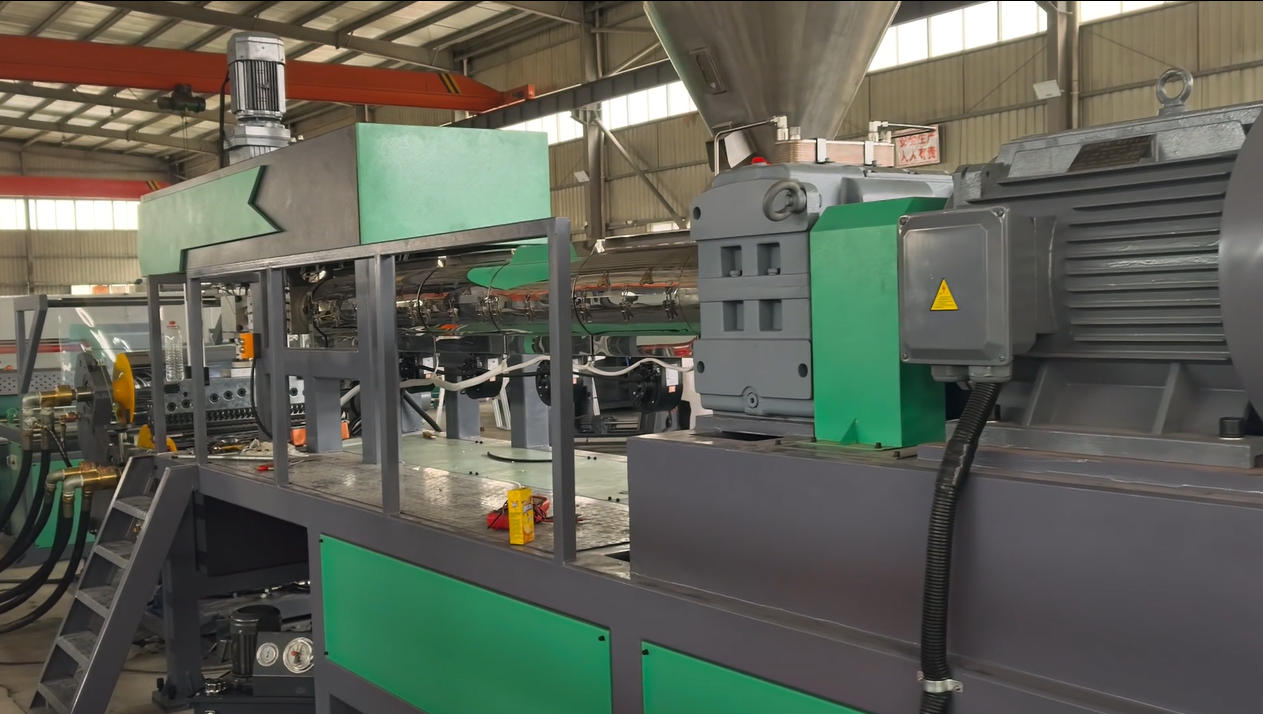

Plastic Sheet Extruder Video
Plastic Sheet Extruder News

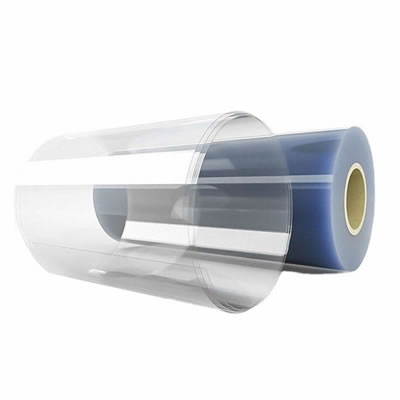

Advanced Plastic Sheet Extruders by Wenzhou Rayshape
In the dynamic world of plastic manufacturing, every final product—from a meticulously formed cup to a protective blister pack—begins with a single, foundational component: a high-quality plastic s...

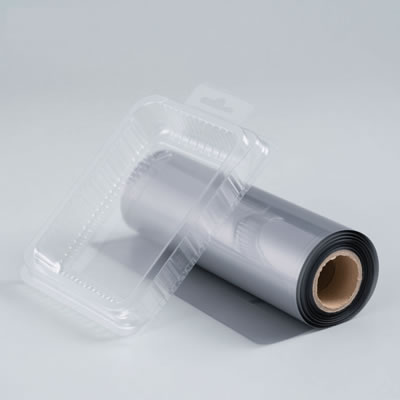

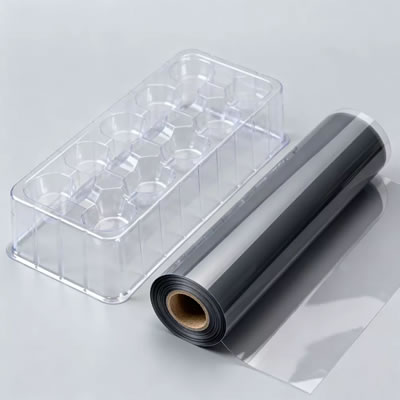

Plastic Sheet Extruder by Wenzhou Rayshape
Introduction to Wenzhou Rayshape Machinery Co., Ltd. Wenzhou Rayshape Machinery Co., Ltd., located in Wenzhou, Zhejiang, China, is a leading manufacturer of plastic processing equipment. Spec...

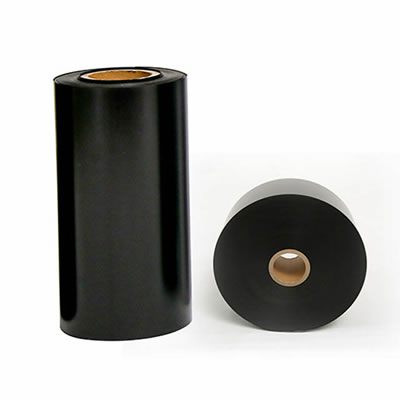

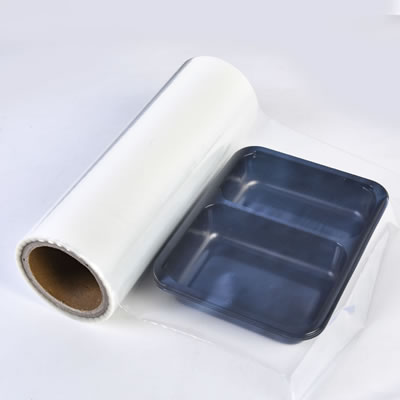

Rayshape Plastic sheet machine
In the dynamic world of plastic manufacturing, efficiency, precision, and sustainability are paramount. At the forefront of this industry stands Wenzhou Rayshape Machinery Co., Ltd., a leading inno...

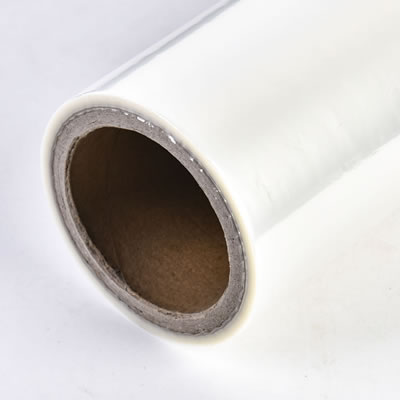

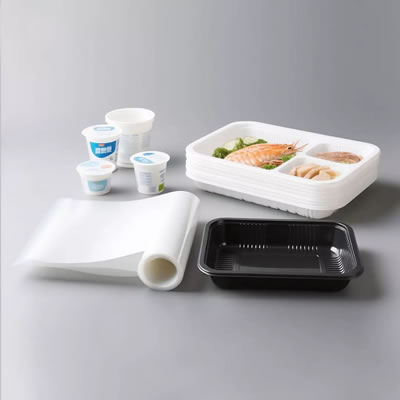

Advanced Plastic Sheet Extrusion by Rayshape
